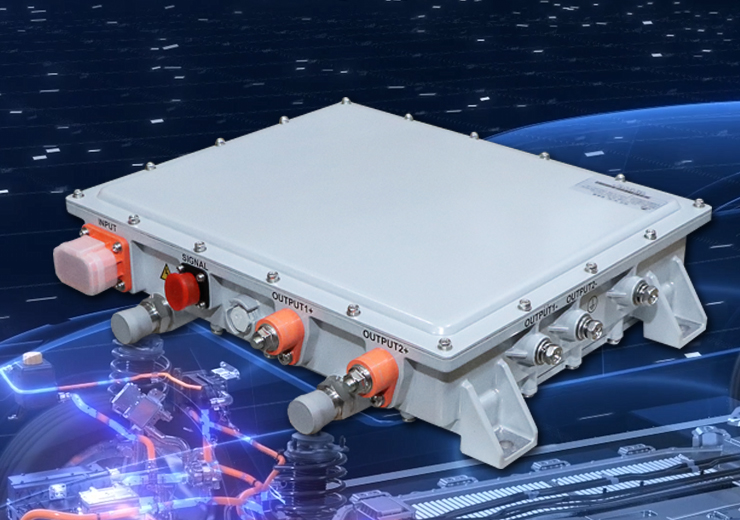

This product operates within an input voltage range of 450–900 Vdc, with a rated output of 27.8 Vdc/12 kW. It employs water-cooled heat dissipation and features input overvoltage/undervoltage alarm and protection, output overcurrent alarm and protection, output overvoltage protection, output short-circuit protection, overtemperature protection, and CAN communication functionality. Suitable for various new energy vehicles including pure electric, hybrid, and range-extended models.
| Project | Minimum | Typical | Maximum | Unit | Conditions |
| Environmental Conditions | |||||
| Operating Temperature | -40 | - | 60 | ℃ | |
| Storage temperature | -40 | - | 85 | ℃ | |
| Relative humidity | 5 | - | 95 | % | No condensation during normal operation |
| Elevation | 0 | - | 3000 | m | |
| Heat dissipation method | Water-cooled | Water flow rate > 16 L/min, inlet water temperature not exceeding 60°C | |||
| Dustproof and waterproof | IP67 | ||||
| Input Characteristics | |||||
| Rated Input Voltage | 540 | Vdc | The input end features reverse polarity protection. | ||
| Input Voltage Range | 450 | 900 | Vdc | ||
| Maximum Input Current | - | - | 35 | A | 450V dc input, full load. |
| Static leakage current | - | - | 3 | mA | When the auxiliary power supply is not energized and the main power supply does not start, measure the input current at the rated input condition of the main power supply. |
| Output Characteristics | |||||
| Rated Output Voltage | 27.8 | Vdc | Rated input and output at half load. | ||
| Output voltage setting | 27.8±0.3 | Vdc | |||
| Output Current Range | 0 | - | 432 | A | Inductive loads such as motors must be connected to the battery. |
| Maximum Output Current | 432 | A | Maximum continuous operating current | ||
| Output rated power | 12000 | W | |||
| Peak output power | 13000 | W | Peak power: 13,000W Operating time: 6 minutes | ||
| Overall efficiency | - | 94 | - | % | Rated voltage input, full-load output conditions |
| Temperature coefficient | - | - | ±0.02 | %/℃ | |
| Output ripple and noise | - | - | 600 | mVp-p | The oscilloscope bandwidth should be 20 MHz. Connect a 10uF capacitor in parallel with a 104 ohm resistor to the probe. Perform testing with the output carrying a load exceeding 5%. |
| Boot-up time | - | - | 3 | S | |
| Output rise time | - | - | 600 | ms | |
| Current stability accuracy | - | - | ±2 | % | |
| Static leakage current | - | - | 6 | mA | Leakage current when the output terminals are connected in parallel to a 24Vdc battery without being connected to high-voltage power supply or 24Vdc control power. |
| Control Method | CAN Control/EN Control | / | |||
| Capacitive load | - | - | 45000 | uF | |
| Dynamic Response Voltage Overshoot Magnitude | 15 | % | Load variation: 30% to 80% to 30%, load change rate ≤ 0.1 A/μs, dynamic load frequency range: 50 Hz to 5 kHz. | ||
| Input continuous power cycling | Support | / | Under normal control signal input and output conditions, the input can withstand five consecutive on-off cycles within one minute without causing power supply failure or damage. | ||
