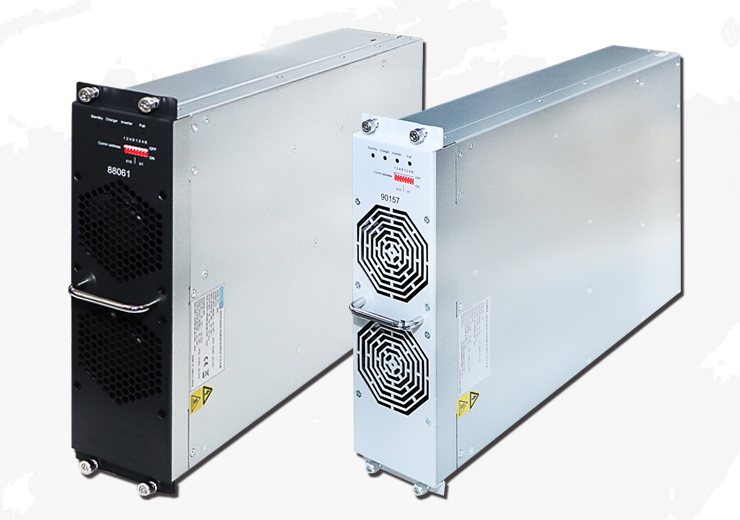

Bidirectional Inverter Power Supply

Bidirectional power flow, capable of both charging and discharging; Supports online software upgrades; Comprehensive protection functions; Electrical isolation between input and output; CAN communication with real-time status data reporting; Suitable for various energy storage or battery devices.

Online Consultation

Product Manual

Technical Specifications

Model Number	DC voltage	Communication	Power (VA/W)	External Dimensions（mm）	Note
Q721	30-43.2Vdc	85-144Vac	Charging720W discharge1200W	259.518776.8	Off-grid
Q725	33.6-50.4Vdc	176-264Vac	Charging1600W discharge2200W	259.518776.8	Off-grid
Q729	44-58Vdc	176-264Vac	Charging2800W discharge2400W	40.8105281	Grid connection
Q674	200-1000Vdc	304-528Vac	Charging15W discharge13.5kW	440.7×276.0×84.0	Off-grid
Q733	100-500Vdc	260-520Vac	Charging15W discharge13.5kW	400×310×80	Off-grid
Q734	100-500Vdc	85-150Vac	Charging15W discharge13.5KW	400×310×80	Off-grid
Q735	100-500Vdc	176-264Vac	Charging15W discharge13.5kW	400×310×80	Off-grid
Q538	304-456Vac	200-750Vdc	15kW	440.7×276×84	Bidirectional input/output
