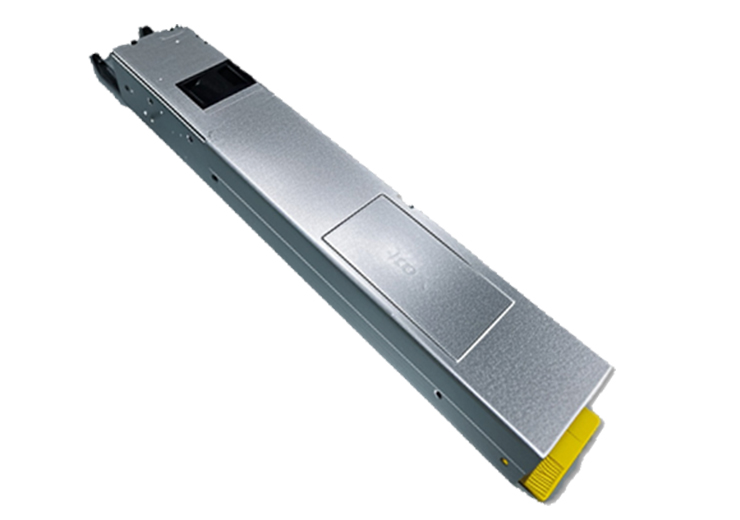

Slim RPS 800-2000W Series
Slim RPS 800-2000W Series

Modular design with short R&D cycles Strong customization capabilities and low-cost platform sharing Fully digital control for PFC and DC-DC Black box recording PMBus/I2C communication functionality Online update capability for primary/secondary-side programs Certified to CCC/CQC/CE/UL/FCC/BSMI/KC/TUV/UKCA/BIS/CB standards Supports fan forward/reverse rotation

Technical Specifications


Power

Input

Output

Efficiency

Dimensions (Length × Width × Height)

800W

90V~264VAC

12V/66A,12VSB/2A

94.8%

322mm*54.5mm*40mm

1300W

90V~264VAC

12V/108A,12VSB/2A

94.8%

322mm*54.5mm*40mm

1600W

90V~264VAC

12V/133A,12VSB/2A

94.8%

322mm*54.5mm*40mm

2000W

90V~264VAC

12V/166A,12VSB/2A

94.8%

322mm*54.5mm*40mm
