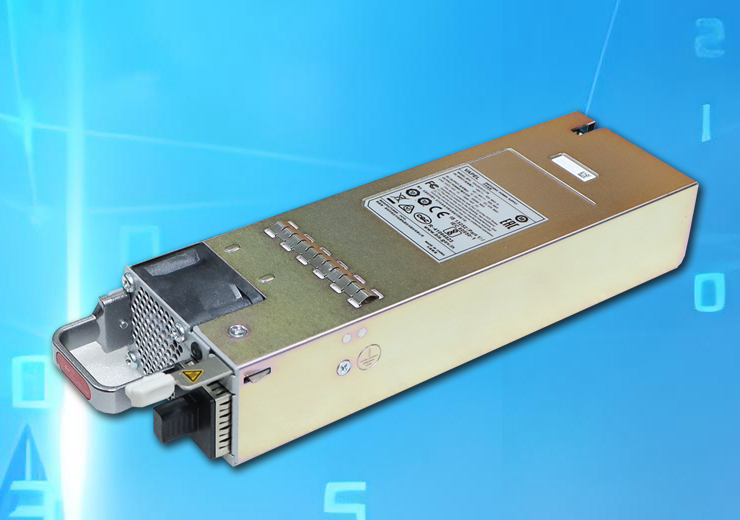

2200W Communication Power Supply

The power supply module performs DC-to-DC conversion, operating normally with +48/-48V input. This unit delivers a rated 12V DC output and supports current sharing in 1+0, 1+1, 2+1, and 2+2 parallel configurations. Operating temperature range: -25°C to 55°C. Includes an enclosure and fan for air-cooled heat dissipation, with airflow directed from output terminals to input terminals. The power supply incorporates overcurrent protection, output overvoltage protection, and overheat protection.

Online Consultation

Product Manual

Technical Specifications

Environmental Conditions
Project	Technical Specifications	Unit	Remarks
Operating Temperature	-25～+55	℃	Starts at -40°C, no performance requirements;
Storage temperature	-40～+70	℃
Relative humidity	5～95	%	non-condensing
Elevation	-60～5000	m	Within the range of 1800m to 5000m, the maximum temperature rating decreases by 1°C for every 220m increase in altitude.
Acoustic Noise	≤69(Sound power)	dBA	35 degrees, 862W, 48Vdc input; tested in 6 directions at a distance of 1 meter.
Working Atmospheric Pressure	53～106	Kpa
Heat dissipation	Features built-in fan for air-cooled heat dissipation. Power supply panel exhausts air sideways (airflow direction: from output terminals to input terminals).
Input Characteristics
-48V input voltage range	-38.4～-72(Rated -48)		Vdc
+48V input voltage range	38.4～57(Rated +48)		Vdc
-48V Input Specification Definition: Connect the positive input terminal [RTN(+)] to ground in accordance with the customer's system. For this individual power supply unit, connect the high-potential input to the [RTN(+)] terminal of the power input port, and connect the low-potential input to the [NEG(-)] terminal of the power input port.
-48V Input Specification Definition: Connect the positive input terminal [RTN(+)] to ground in accordance with the customer's system. For this individual power supply unit, connect the high-potential input to the [RTN(+)] terminal of the power input port, and connect the low-potential input to the [NEG(-)] terminal of the power input port.
Maximum Input Current	63	A
Input surge current	94.5	A
Output Characteristics
Output Voltage Setpoint	12.03～12.27	Vdc	Rated input, 1100W output, tested under high-temperature, normal-temperature, and low-temperature conditions.
	(Typical value 12.15)	Vdc
Output Voltage Range	11.80～12.50	Vdc	Full-range (operating temperature, input voltage, output load) testing and acceptance.
	(Typical value 12.15)	Vdc
Output Power	2200	W
Minimum load	0	W	The unit can be started and operate normally under no-load conditions.
Voltage Regulation Accuracy	≤±3	%	Full input, output, and temperature range
Source adjustment rate	≤±1	%	Rated current output, full voltage range variation
Load Regulation	≤±3	%	Rated voltage input, full load variation
Output Efficiency	10%Iout：≥90	%	1. 53.5Vdc input (fan externally powered, tested at 25°C ambient temperature). 2. 20% rated load current (fan externally powered, tested at 25°C ambient temperature). R&D testing requires acceptance with a 0.1% margin; production testing efficiency threshold must not be lower than 94%. 3. Peak efficiency up to 95% (R&D testing accepts 0.1% margin; production testing efficiency threshold no less than 95%) (53.5Vdc input, load range 30%–60%, fan externally powered, tested at 25°C ambient temperature).
	20%Iout：≥94	%
	50%Iout：≥94	%
	100%Iout：≥91	%
Output ripple and noise	≤300	mVp-p	Full input range, output power ≤20W or -25°C to -5°C. During testing, connect one 0.1uF ceramic or gold-film capacitor and one 10uF electrolytic capacitor in parallel at the output terminal. Set the oscilloscope bandwidth to 20MHz.
	≤200	mVp-p	Full input range, temperature -5°C to 55°C, and power >20W;
