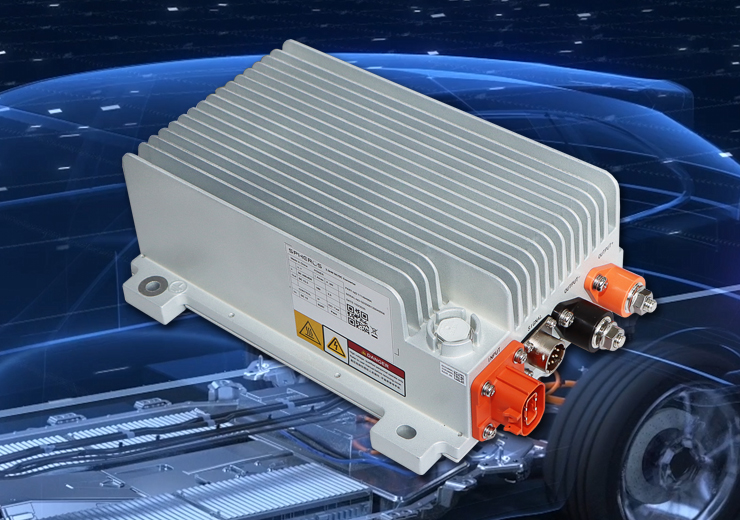

2.5kW Vehicle-Mounted DC/DC Power Supply

This product operates within an input voltage range of 400–850 Vdc, delivering a rated output of 13.5 Vdc/2500 W (peak power 3000 W, duration 6 min). It employs system fan cooling and incorporates multiple protection features: input overvoltage/undervoltage alarm and protection, output overcurrent alarm and protection, output overvoltage protection, output short-circuit protection, and overtemperature protection. Suitable for various new energy vehicles including pure electric, hybrid,

Online Consultation

Product Manual

Technical Specifications

Project	Minimum	Typical	Maximum	Unit	Conditions
Environmental Conditions
Operating Temperature	-40	65	85	℃	Bottom case temperature: -40 to 60°C, maximum current 220A; 60 to 80°C, reduce current by 2A per 1°C increase; Above 80°C, reduce current by 5A per 1°C increase; Above 100°C, trigger over-temperature alarm and shut down.
Storage temperature	-40	-	85	℃
Relative Humidity	5	-	90	%	No condensation during normal operation
Elevation	0	-	3000	m
Elevation	≤50			dB
Heat dissipation method	Through application system fan cooling (external)			Wind speed 5 m/s, wind direction
Dustproof and waterproof	IP67
Input Characteristics
Rated Input Voltage	570		Vdc	The input end features reverse polarity protection.
Input Voltage Range	400		850	Vdc
Maximum Input Current	-	-	8.5	A	400Vdc input, peak output power 3000W
Static leakage current	-	-	1	mA	Auxiliary power supply is not energized, power supply fails to start. Test input current under the following conditions: rated input of main power supply, continuous power supply, and instantaneous power shutdown.
Output Characteristics
Rated Output Voltage	13.5		Vdc
Rated Output Current	180		A	Maximum continuous operating current
Output Current Range	0	-	180	A
Maximum power output	2500		W
Peak output power	3000		W	Peak power: 3000W Operating time: 6 minutes
Overall efficiency	-	93	-	%	Rated output voltage at full load, rated input voltage
Temperature coefficient	-	-	±0.02	%/℃
Output ripple and noise	-	-	500	mVp-p	Rated input voltage, rated output at half load or above, tested under ambient temperature conditions. The oscilloscope bandwidth should be 20MHz, with probes connected in parallel to a 10uF electrolytic capacitor + 104 ceramic capacitor.
Output ripple and noise	-	-	500	mVp-p
Boot-up time	-	-	3	S
Output rise time	-	-	300	ms
Voltage Regulation Accuracy	-	-	±3	%	The accuracy requirements are met across the entire input voltage range, temperature range, and load range.
Current stability accuracy	-	-	±3	%	Across the entire input voltage range and temperature range, the output current accuracy is ±3A at full load (180A). At half load (90A) or below, the accuracy is ±2.7A.
Current stability accuracy	-	-	±3	%
