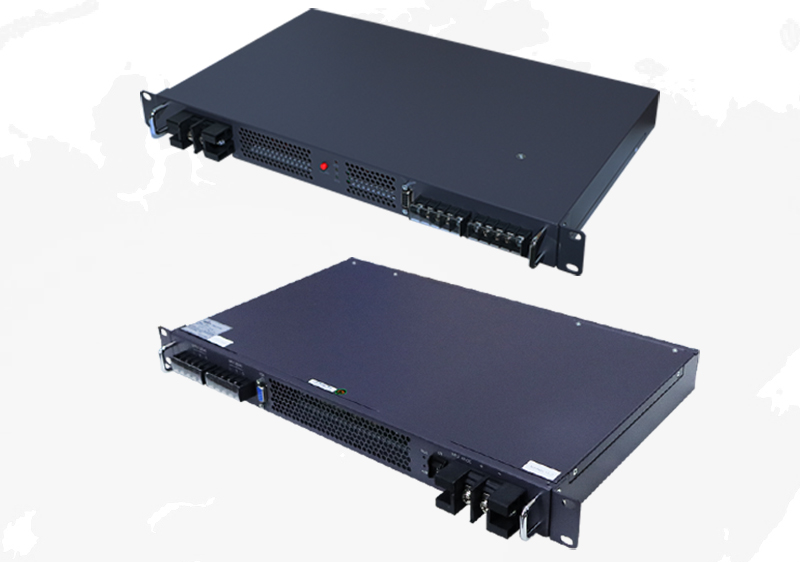

UPS Power Supply (Standby Type)

RS485 Communication, MODBUS Protocol Short-Circuit Fault Clearance Function: Capable of fusing a 1A/250Vac fast-acting fuse (I2T = 0.52) within 3ms without triggering the power supply into protective alarm mode Output Waveform with Excellent Sinusoidal Quality Advanced Dual-Loop Control for Superior Dynamic Performance and Output Accuracy Comprehensive Range of Protective Functions Advanced Control Capabilities Suitable for Various Load Types

Online Consultation

Product Manual

Technical Specifications

Model Number	Input voltage	Power Rating(VA/W)	External Dimensions(mm)	Note
Q456	40-57.6Vdc/220Vac	600/480	301.0126.043.5	Standby UPS
Q505	40-57.6Vdc/220Vac	650/520	274.0126.043.5	Standby UPS
D331	40V-60Vdc/220Vac	1000/800	482.622743.5	Standby UPS
Q420	40-57.6Vdc/220Vac	1000/800	482.626243.5	Standby UPS:With charging capability.Q420Charging current 10A,Q420ACharging current 20A.Maximum charging voltage57.6V。
Q425	40-57.6Vdc/220Vac	1000/800	482.626243.5	Standby UPS:With charging capability.Q425Charging current 5.5A,Q425D Charging current 3A.Maximum charging voltage57.6V
Q423	21-30Vdc/220Vac	2000/1600	482.626243.5	Standby UPS
Q453	43-57.6Vdc/220Vac	2000/1600	482.626243.5	Standby UPS:With charging function, charging current5.5A。
Q460	40-57.6Vdc/220Vac	2000/1600	482.626243.5	Standby UPS
Q497	43-57.6Vdc/220Vac	2000/1600	482.626243.5	Standby UPS
Q503	43-57.6Vdc/220Vac	2000/1600	482.626243.5	Standby UPS:With charging capability.Q503 Charging current 3A, Maximum charging voltage 57.6V
Q629	195-290Vdc/220Vac	2000/1600	482.626243.5	Standby UPS: With display
Q495	43-57.6Vdc/220Vac	3000/2400	482.626243.5	Standby UPS
D356	43-57.6Vdc/220Vac	3000/2400	482.626243.5	Standby UPS
