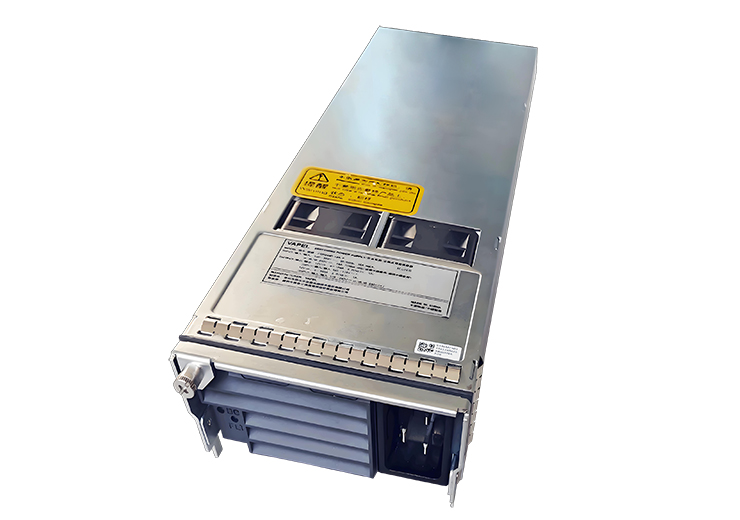

Custom Network Power Supply 2400W
Custom Network Power Supply 2400W

Modular design with short R&D cycles Strong customization capabilities and low-cost platform sharing Fully digital control for PFC and DC-DC Black box recording PMBus/I2C communication functionality Online update capability for primary/secondary-side programs Certified to CCC/CQC/CE/UL/FCC/BSMI/KC/TUV/UKCA/BIS/CB standards Supports fan forward/reverse rotation

Technical Specifications

n  Output Power:2400W

n  Input voltage 90Vac-305Vac180V-320VDC or180VDC-410VDC

n  Output Voltage:12V/200A, 3V3SB/1A

n  Efficiency:PlatinumEfficiency( >94% )

n  Dimensions:401.75mm*101.6mm*40.89mm

n  surgeDifferential mode2KV,Common modesurge 4KV
