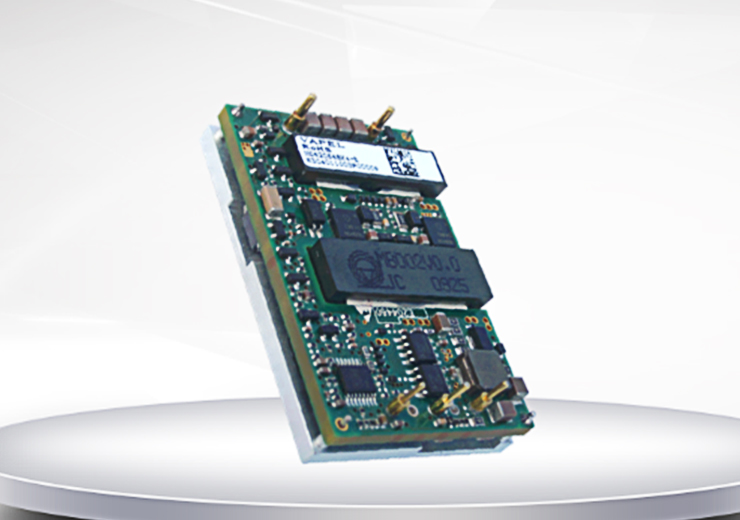

DC-DC 1/4-Brick 12V Bus Series
DC-DC 1/4-Brick 12V Bus Series

2:1 input voltage; High efficiency: 96.5%; Remote on/off control; Input under-voltage protection; Output over-voltage protection; Output over-current protection; Over-temperature protection; Current sharing; Voltage regulation accuracy: ≤±1%; Output ripple noise: ≤100mVp-p; Dimensions: 57.9*36.8*12.7mm;

Technical Specifications

Input voltage

Vdc

Output Voltage

Vdc

Output Current

A

Output power

W

Typical Efficiency%

36—75

12

18

216

94

36—75

12

25

300

94.5

36—75

12

35

420

94.5

36—75

12

42

500

95.5

36—75

12

55

660

96.5
