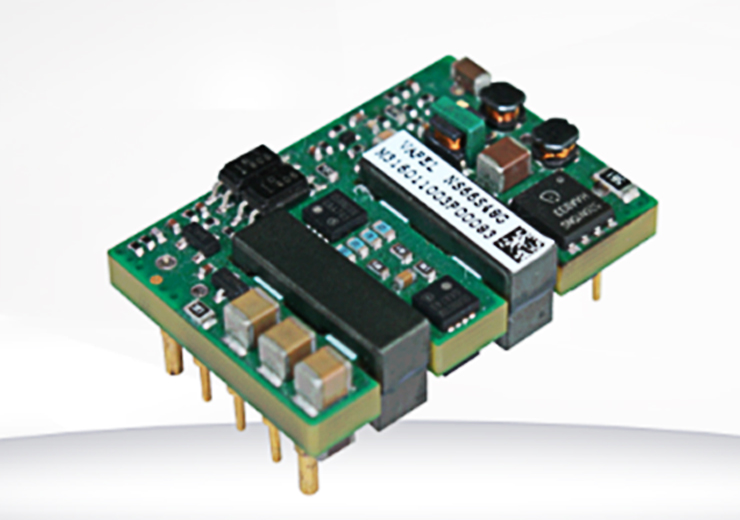

DC-DC 1/16 Brick Series
Input voltages: 2:1 and 4:1; Remote on/off switching; Input under-voltage protection; Output voltage fine-tuning; Output over-voltage protection; Output over-current protection; Over-temperature protection; Dimensions: 33.0 × 22.9 × 9.8 mm;
Technical Specifications
Input voltage Vdc | Output Voltage Vdc | Output Current A | Output Power W | Typical Efficiency ％ |
18-36 | 3.3-12 | 4.2-20 | 50-78 | 91.5 |
36-75 | 1.2-2.5 | 25 | 30-62.5 | 89 |
36-75 | 3.3 | 15-25 | 50-82.5 | 92 |
36-75 | 5 | 10.0-20 | 50-100 | 91.5 |
36-75 | 12 | 4.2-6.5 | 50-78 | 92 |
