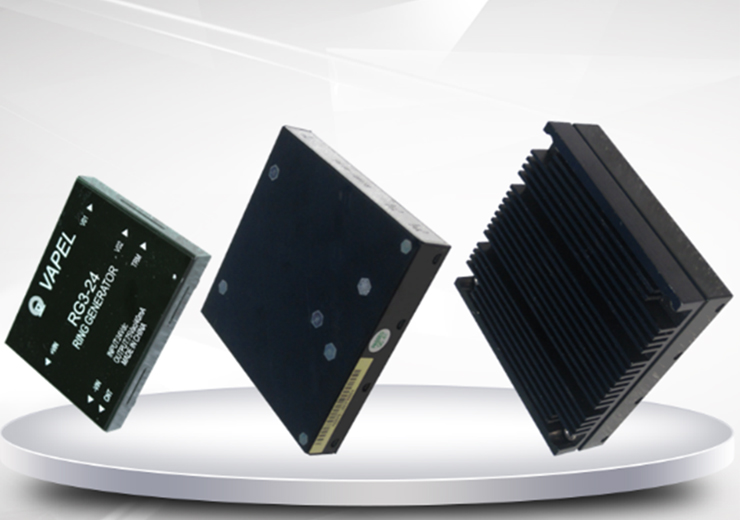

Bell Flow Series Modules
Isolated output; Frequency: 25Hz; Remote on/off control; Output voltage fine-tuning; Output overcurrent protection; Overtemperature protection; Dimensions: 65.0*50.0*9.2mm 100.0*100.0*16.0mm
Technical Specifications
Input voltage Vdc | Output Voltage Vdc | Output Current A | Output Power W | Typical Efficiency ％ |
18-36 | 75 | 0.04-0.133 | 3-10 | ≥66 |
36-75 | 75 | 0.04-1.0 | 3-75 | ≥86 |
36-75 | 95 | 0.42 | 40 | ≥86 |
Related Recommendations
-
-
PFC Series ModulesHigh efficiency: 97%; Remote on/off control; Input under-voltage protection; Output over-voltage protection; Output voltage fine-tuning; Output over-current protection; Over-temperature protection; Current sharing; Dimensions: 116.8*61.0*12.7mm 61.0*57.9*12.7mm -
DC-DC SIP Series ModulesNon-isolated output; Remote power on/off; Input under-voltage protection; Output voltage fine-tuning; Output short-circuit protection; Output overcurrent protection; Over-temperature protection; Efficiency >92%; Compact size; High MTBF; Voltage regulation accuracy: ≤ ±1%; Output ripple noise: ≤ 100mVp-p; -

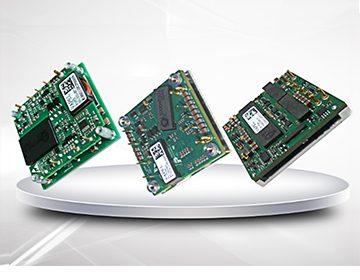

DC-DC Half-Brick SeriesHigh efficiency: 94%; Remote on/off control; Input under-voltage protection; Output voltage fine-tuning; Output over-voltage protection; Output over-current protection; Over-temperature protection; Dimensions: 61.0 × 57.9 × 12.7 mm; -
