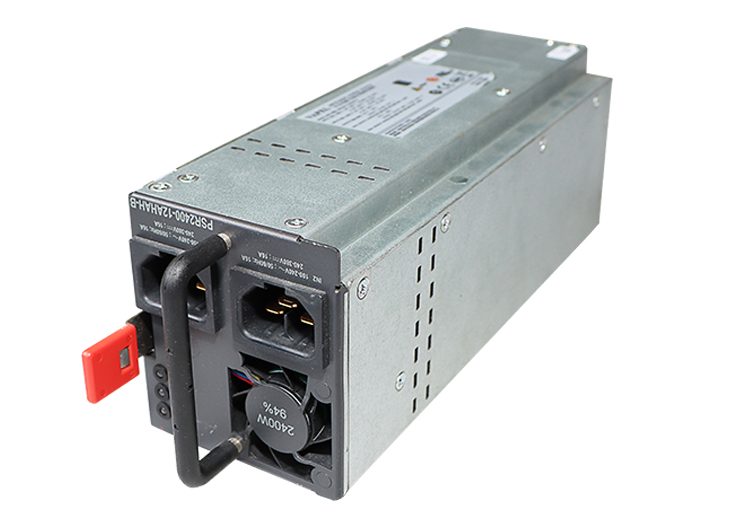

Custom CRPS
Custom CRPS

Modular design with short R&D cycles Strong customization capabilities and low-cost platform sharing Fully digital control for PFC and DC-DC Black box recording PMBus/I2C communication functionality Online update capability for primary/secondary-side programs Certified to CCC/CQC/CE/UL/FCC/BSMI/KC/TUV/UKCA/BIS/CB standards Supports fan forward/reverse rotation

Technical Specifications

n  Output Power:2400W

n  Input voltage 90Vac-305Vac180VDC-410VDC

n  Output Voltage:12V/200A, 12VSB/2A

n  Efficiency:Platinum Efficiency( >95% )

n  Dimensions:225mm*73.5mm*83mm(2U)

n  Dual input, automatic switching during power loss

n  Differential mode: 2KV Common mode: 4KV
